Iron Ore Processing Plant: Crushing, Grinding & Magnetic Separation Flow

Iron Ore Processing Plant: Crushing, Grinding & Magnetic Separation Flow

Iron ore is the core raw material of the global steel and construction industry. Most raw iron ores extracted from mines contains a large amount of gangue, impurities and mixed stone, which cannot be directly used for smelting due to low iron grade. Therefore, almost all commercial iron ore mines need a complete beneficiation process to improve concentrate grade and recovery rate. A standard iron ore processing plant mainly relies on crushing, grinding and magnetic separation to realize effective separation of iron minerals and gangue.

Many mine owners face common problems such as unreasonable process layout, low concentrate grade, high tailing loss and excessive power consumption. A scientific and standardized iron ore beneficiation flow can greatly improve production efficiency and economic benefits.

1. Crushing and Screening Stage

The crushing system is the primary foundation of the whole iron ore processing plant. Bulk raw ore is transported to the vibrating feeder, and evenly sent to the primary jaw crusher for coarse crushing. After primary crushing, the materials are sent to the vibrating screen for classification. The qualified particle size enters the next grinding stage, while the oversize materials are transported to the cone crusher for medium and fine crushing.

As iron ore belongs to high-hardness rock, cone crushers are widely used for secondary crushing to ensure uniform particle size, reduce over-crushing and improve grinding efficiency. Closed-circuit screening and crushing circulation effectively stabilize the feeding particle size for the ball mill.

2. Grinding and Classification Stage

Uniform crushed ore is sent to the ball mill for fine grinding. The ball mill grinds the mixed ore into fine powder to realize monomer dissociation between iron minerals and impurity gangue. Fully dissociated iron powder is the key to high recovery magnetic separation.

After grinding, the slurry flows into the hydrocyclone for classification. The qualified fine-grained slurry enters the magnetic separation process, while the coarse unqualified particles return to the ball mill for re-grinding. This closed-loop grinding and classification system avoids material waste and ensures stable output fineness.

3. Magnetic Separation  Stage

Magnetic separation is the core link of the entire iron ore processing plant. Due to the obvious magnetic difference between iron minerals and gangue impurities, high-efficiency wet magnetic separators can effectively separate iron concentrate from quartz, feldspar and other impurities.

The production process adopts multiple stages of roughing and cleaning magnetic separation. Through reasonable magnetic field intensity configuration, the iron concentrate grade is effectively improved, and the tailing iron loss is reduced. After magnetic separation, the high-grade iron concentrate is obtained, and the tailings are discharged after sedimentation and dehydration.

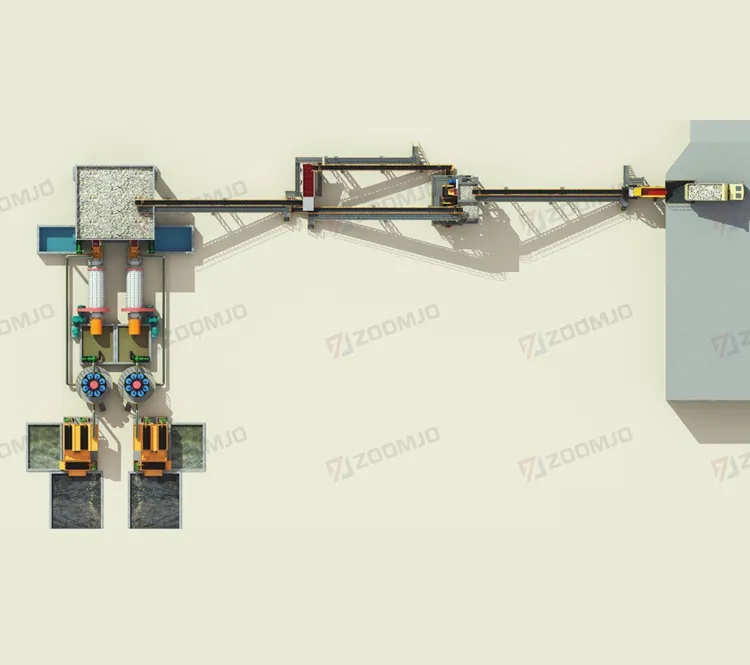

4. Complete Iron Ore Processing Flow Chart

Raw Iron Ore → Feeding → Jaw Crushing → Cone Crushing → Vibrating Screening → Ball Mill Grinding → Hydrocyclone Classification → Magnetic Separation → Concentrate Dehydration → Finished Iron Concentrate

5. Advantages of Our Iron Ore Beneficiation Plant

• Complete turnkey solution: Provide overall plant design, equipment manufacturing, installation and commissioning, one-stop service for iron ore processing projects.

• High recovery rate: Optimized crushing, grinding and magnetic separation process to maximize iron resource utilization.

• Stable output quality: Multi-stage magnetic separation technology ensures stable and high concentrate grade.

• Energy-saving and low consumption: Reasonable process configuration reduces unnecessary energy waste and production costs.

• Strong customization: Customize production lines of different capacities according to customer site conditions and ore characteristics.

A complete iron ore processing plant is a systematic project integrating crushing, grinding, classification and magnetic separation. Scientific process layout and high-quality supporting equipment are the key to improving economic benefits. Whether it is a new iron ore beneficiation project or old plant renovation and upgrading, professional process design is essential.
